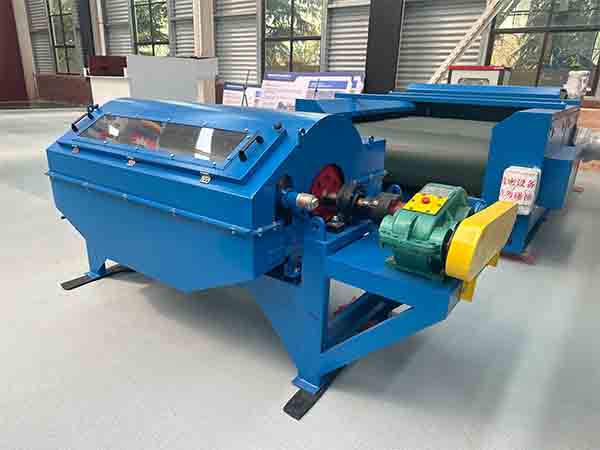

Magnetic separation technology mainly relies on the differences in magnetic properties of various minerals to achieve mineral separation under the action of magnetic force and other mechanical forces. To achieve the desired magnetic separation effect, it is essential to first understand which factors affect the separation performance of the magnetic separator.

Factors affecting the separation effect of magnetic separators

1. Feed particle size

The particle size of the feed is an important factor affecting the separation effect of the magnetic separator. For most ores, the size of the feed grains indicates the degree of separation of individual ore particles, that is, the degree of separation between magnetic mineral particles and gangue minerals. Small ore particles fed into the magnetic separator make it easy to obtain satisfactory separation parameters. Coarse-grained ore feed indicates insufficient ore liberation, with magnetic ore particles still bound to some gangue minerals. This directly impacts beneficiation parameters, reducing concentrate grade. Therefore, the ore particle size fed into the magnetic separator must ensure adequate individual particle separation.

2. Pulp concentration

The pulp concentration mainly refers to the overflow concentration of the classifier. Generally, the concentration of the feed slurry should not exceed 35%, and should be controlled at around 30%. Of course, each concentrator should determine the specific concentration based on its own magnetic separation requirements and actual conditions.

3. The rotation speed of the magnetic separator

The rotational speed of a magnetic separator mainly affects its processing capacity, which in turn has a certain impact on the quality of the concentrate. Generally, small-diameter magnetic separators use high speeds, while large-diameter magnetic separators use low speeds.

4. Magnetic deflection angle of the magnetic separator

The magnitude of magnetic declination primarily affects concentrate quality and recovery rate. The magnetic declination indicator is located on the shaft near the drive side; the magnitude of the magnetic declination can be adjusted by adjusting the nut. A small magnetic deflection angle allows weaker magnetic particles to be separated, thus improving recovery rates. A large magnetic deflection angle allows only stronger magnetic ore particles to be separated, improving concentrate quality.
