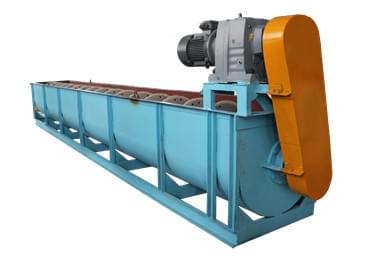

Spiral Sand Washer

LZZG offer a wide range of Screw Sand Washer, which widely appreciated across many industries such as coal, aggregate and mineral. Fabricated using optimum grade Q345 steel material, our range of sand washer, gravel washer is appreciated for higher efficiency and durability. There is less chance of wear and tear and offers longer service life.

LZZG Screw Type Sand and Gravel Washer is widely used to remove dust from sand and hence improve the sand quality. The sand washer, gravel washer designed by LZZG is highly acclaimed for its minimum sand loss during washing, high efficiency and simple structure.

Chat Line

Or Call Us Now +86-379-65160016

1. Reasonable structure, convenient maintenance, small power consumption. The novel sealing structure of the spiral stone washer, the whole sealing oil bath type transmission device and the adjustable overflow weir plate ensure that the series of products are durable, with good cleaning and dewatering effects, and the fine products are not disorderly.

2. Large processing capacity, because the screw sand washing machine sand washing principle is not to use a bucket to “catch”, so its processing capacity has been greatly improved.

3. The higher energy utilization rate reduces the energy loss caused by the wheel bucket in the process of lifting, so that the energy can be better utilized.

4. High cleanliness. More time and times for the sand to be cleaned compared to wheel type sand washer.

Features & Benefits

1. Reasonable structure, convenient maintenance, small power consumption. The novel sealing structure of the spiral stone washer, the whole sealing oil bath type transmission device and the adjustable overflow weir plate ensure that the series of products are durable, with good cleaning and dewatering effects, and the fine products are not disorderly.

2. Large processing capacity, because the screw sand washing machine sand washing principle is not to use a bucket to “catch”, so its processing capacity has been greatly improved.

3. The higher energy utilization rate reduces the energy loss caused by the wheel bucket in the process of lifting, so that the energy can be better utilized.

4. High cleanliness. More time and times for the sand to be cleaned compared to wheel type sand washer.

Working principle

The Screw sand washer machine adopts inclination of 15°, under the water tank, three weir plates form the sediment pool, the screw head is immersed in this tank, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment tank.

The screw sand washer is a kind of sand washing machine, appliance by water fit with the sand maker. The sand washer can wash out micro amount of stone powder and impurities from the mixed sand made by the sand maker to improve the quality of the sand.

Through the generator and redactor drives the impeller to rotate in circles continuously in the water tank,the sand washers are impelled to make the sand stones and slag particles mixed, inverted and washed in the tank and discharged after dewatering of the materials in the impeller.

Specifications

Model Feeding Size(mm) Capacity(t/h) Spiral Diameter(mm) Spiral Shaft Tank Length(mm) Power(kw) Overall Size(mm)
LX0760 ≤10 20-40 760 1 6000 7.5 5700X1420X1900
LX0920 ≤10 30-60 920 1 8000 11 8710X1630X2080
LX1120 ≤10 40-80 1120 1 8000 18.5 9230X1840X2130
LX1500 ≤10 50-100 1500 1 8000 22 9620X2230X2480

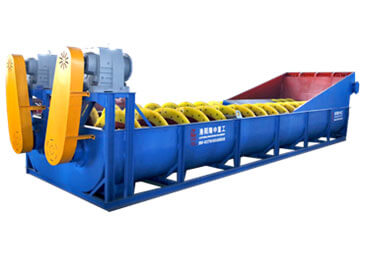

2LX0920 ≤10 60-120 920X2 2 8000 11X2 8710X2600X2080
2LX1120 ≤10 80-160 1120X2 2 8000 18.5X2 9230X3050X2130
2LX1500 ≤10 120-250 1500X2 2 8000 22X2 9620X3730X2480
