What is the working principle of the circular vibrating screen

As a customer, if you want to extend the service life of a circular vibrating screen, you need to understand the working principle of the circular vibrating screen. The circular vibrating screen is a kind of multi-layer vibrating screen with cyclic motion. The new type of circular vibrating screen is mainly used to screen granular materials such as gravel and sand. So many people call it a stone vibrating screen, a sand screen machine, a gravel separator, and so on. The circular vibrating screen adopts a cylindrical eccentric shaft exciter and an eccentric block to adjust the amplitude, the screening line is long, and the screening specifications are many.

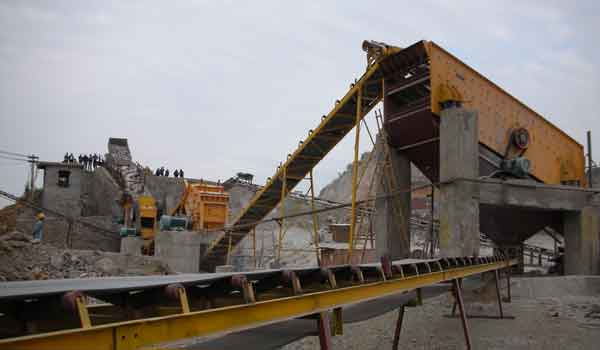

the circular vibrating screen

It is suitable for the screening of sand and gravel in quarries, and can also be used for product classification in coal preparation, mineral processing, building materials, electric power, chemical industries, and other industries. The vibrating screen uses a cylindrical eccentric shaft exciter and an eccentric block to adjust the structural amplitude. The mature rivet connection assembly frame structure improves the service life of the equipment, and the spring damping device reduces the impact force on the foundation.

the circular vibrating screen

Working principle of circular vibrating screen

The motor makes the eccentric block of the exciter rotate at a high speed through the V-belt. The running eccentric block produces a large centrifugal force, which stimulates the screen box to produce a certain range of circular motion. The material on the screen is continuously thrown out by the impulse transmitted by the screen box on the inclined screen surface. When the material encounters the screen surface, the particles smaller than the screen hole pass through the screen to achieve classification.

the circular vibrating screen

When using and maintaining the circular vibrating screen, it should be started when there is no material on the surface of the screen, to avoid starting with materials as much as possible, and the feeding can only be carried out after the screening machine is running smoothly. Stop feeding before stopping, and stop when surface material is eliminated. During the work, the operation of the screening machine should be observed frequently. If abnormal movement or abnormal sound is found, stop the machine for inspection in time to find out the cause and troubleshoot.

the circular vibrating screen

Working characteristics of circular vibrating screen

1. The block eccentricity is used as the exciting force, which is very strong.

2. The screen beam and screen box adopt high-strength bolts, with simple structure and convenient and quick maintenance.

3. Using tire coupling, flexible connection, and stable operation.

4. The machine adopts a structure with a small amplitude, high frequency, and large inclination angle, high screening efficiency, large processing capacity, long service life, low power consumption, and low noise.

the circular vibrating screen

The above introduces the working characteristics and working principles of the circular vibrating screen. If you want to know more about the circular vibrating screen, welcome to consult Longzhong Heavy Industry!
